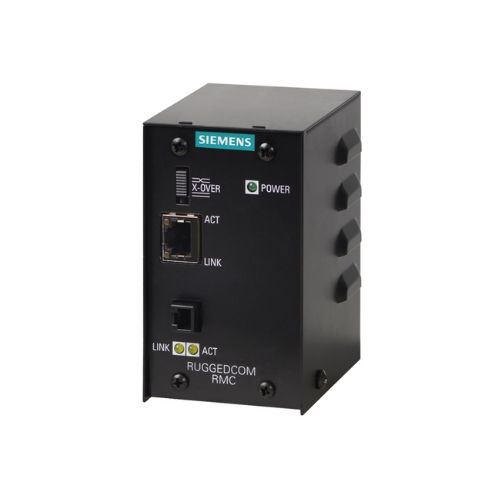

SIEMENS RUGGEDCOM RMC30 SERIAL DEVICE SERVERS

The RMC30 Serial Device Servers are the utility-grade, 2-port Serial-to-Ethernet server that has been specifically designed to operate in electrically harsh and climatically demanding environments. The RMC30 offers both an RS232 port and an RS485/422 port simultaneously via a solid screw down terminal block. The 10Base-T Ethernet port supports both auto-negotiation and autocrossover detection and simplifies cabling. Simple and intuitive network based configuration using either the built in Web or Telnet server makes setup a breeze.The RUGGEDCOM-Selector lets you configure RUGGEDCOM products quickly, easily, and efficiently, by using targeted navigation through selection menus or by entering item numbers. Selected products can then be ordered directly by transferring the parts list into the Industry Mall.

RMC30 Serial Device Servers Ethernet Ports

  • 1x RS232 and 1x RS422/485 port
  • 1x 10BaseTX
  • Fully compliant EIA/TIA RS485 and RS232 ports
  • Built-in optional RS485 termination

RMC30 Serial Encapsulation

  • Transmit serial data over an IP network
  • Support for Modbus TCP, DNP 3, TIN serial protocols
  • Baud rates up to 230 Kbps
  • Point-to-point and multipoint modes
  • Convert Modbus RTU to Modbus TCP
  • Supports multiple Modbus masters
  • Use “Serial IP” port redirection software to support PC application statistics and built-in “sniffer” for troubleshooting

UNIVERSAL POWER SUPPLY OPTIONS

  • Input voltages of 24 VDC, 48 VDC, and high-power (88–300 VDC or 85–264 VAC) for worldwide operability
  • Integrated power supply eliminates need for awkward external power transformer
  • Screw-down terminal blocks ensure reliable, maintenance-free connections
  • CSA/UL 60950 safety approved to +85°C

DESIGNED FOR HARSH ENVIRONMENTS

  • Exceeds IEC 61850-3 requirements for electric power substation
  • Exceeds IEC 61000-6-2 requirements for industrial environments
  • Exceeds NEMA TS 2 requirements for traffic control equipment
  • Meets IEEE 1613 requirements for electric power substations
  • 3kV (RMS) isolated serial ports
  • Operates over a temperature range of –40°C to +85°C without the use of fans for improved reliability
  • 21 AWG galvanized steel enclosure and DIN or panel mounting options provide secure mechanical reliability

MANAGEMENT AND DIAGNOSTICS

  • Web-based, Telnet, CLI management interfaces
  • SNMP v1/v2/v3 with traps (56-bit encryption)
  • Rich set of diagnostics with logging and alarms
  • Ethernet and Serial LED indicators aid in field troubleshooting
  • Flash memory for easy upgrades
  • System watchdog with automatic reset
  • Built-in real-time clock and SNTP time synchronization

MANAGEMENT TOOLS

  • Web-based, Telnet, CLI management interfaces
  • SNMP v1/v2/v3 (56-bit encryption)
  • Remote monitoring (RMON)
  • Rich set of diagnostics with logging and alarms

UNIVERSAL POWER SUPPLY OPTIONS

  • Fully integrated power supplies (no external adapters)
  • Popular low voltage ranges: 24 VDC (18–36 VDC), 48 VDC (36–59 VDC)
  • Universal high-voltage range: 88–300 VDC or 85–264 VAC
  • CSA/UL 60950 safety approved -40°to +85°C

RUGGEDCOM products perform at their best when the environment is at its worst, offering fast and reliable communications for electric power, transportation, oil & gas and other industries. To Explore the Ruggedcom Portfolio with us Click Here!
