Siemens ACM-basic 3EX5 080-0 AND ACM-advanced 3EX5 080-1 Digital Monitoring devices. Air-insulated switchgear

Siemens ACM-basic 3EX5 080-0 AND ACM-advanced 3EX5 080-1 Digital Monitoring devices, Air-insulated switchgear

We offer a complete line of monitoring devices:  ACM-basic 3EX5 080-0 with a variety of innovative functionalities that can be perfectly matched to your requirements, ensuring that impending faults will be detected as early as possible and before the security of supply is compromised. Discover supply security at an entirely new level in our portfolio.

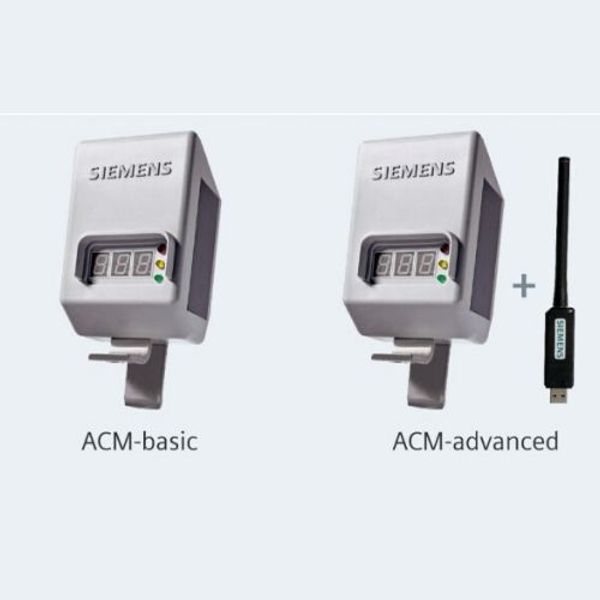

ACM-basic 3EX5 080-0

The basic version 3EX5 080-0 of the Siemens device for basic arrester condition monitoring (ACM) provides a wide range of standard functions, including total leakage current measurement and display, surge current impulse metering and display, 3rd harmonic analysis of leakage current with compensation for network-dependent harmonics, temperature correction, and condition indication by means of LEDs in the colors of traffic lights.

If the basic version is already in use on a surge arrester, it is possible to upgrade to the advanced version using a USB wireless module, free software, and a specific access license, without having to modify the arrester. It then has access to the entire range of functions of this powerful monitoring system.

ACM-advanced 3EX5 080-1

The ACM 3EX5 080-1 monitoring device features a wireless USB module to allow for direct, wireless communication with a PC or notebook.

You can use the USB wireless module (3EX5 086) and free “ACM Service Tool” software to connect the monitoring device and PC using the existing USB port. The Service Tool software makes it possible to display, analyze and evaluate the measured and calculated data on a PC. It can also be used to modify and store certain customer-specific parameters (surge arrester type, date/time correction, location, name, etc.) and perform software updates.

Siemens Transmission Products – Leader in innovations with comprehensive, connective and sustainable portfolio

Transmission products play a vital role in the energy value chain. Siemens Transmission Products provides all key elements including power transformers and distribution transformers as well as gas-insulated and air-insulated switchgear and components. Products are offered individually, bundled or with related engineering upgrade to systems. Our products offer low life cycle costs with maximum availability, highest efficiency and short commissioning times.

We are driving technology innovations not only regarding the performance of transmission products but also in the area of sustainability and eco efficiency. By merging physics and data we enable new products and applications: Sensformer® and Sensgear®. With our global factory network and leading innovations we provide the highest level of quality and reliability to our customers: TSOs, DSOs, power producers, EPCs and industrial companies.
