Siemens Reyrolle 7SR224 Directional Overcurrent Protection Relay

SKU: RS_7SR224 Categories: ,

Siemens Reyrolle 7SR224 Directional Overcurrent Protection Relay

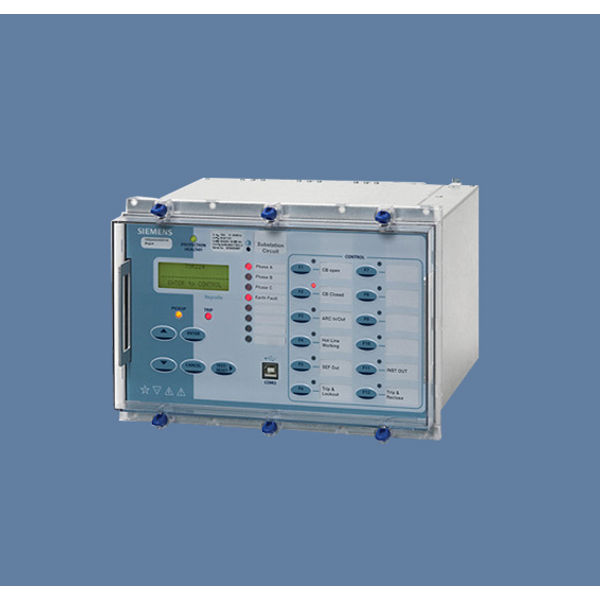

Siemens 7SR224 Directional Overcurrent Relay series relays include for directional control of three phase overcurrent and earth fault functionality and typically installed as an integral controller for a pole mounted recloser. The controller offers an integrated auto-reclose solution for use on OHL feeders.The relay functionality allows highly flexible settings for current and time grading making it compatible with all types of overcurrent protections.Relays have four current and four voltage inputs and are housed in E10 cases.Integrated logic is provided to allow the optimal configuration of relay functionality with the relays analogue inputs and binary input/output circuits.Protection, instrumentation and metering functionality is accessible via data comms channel(s). A front USB port for local PC connection and rear electrical RS485 port for remote connection are provided as standard, additional ports are available as options.

PROTECTION FUNCTIONS

  • Undercurrent (37)
  • Broken Conductor (46BC)
  • Negative Phase Sequence Overcurrent (46NPS)
  • Thermal Overload (49)
  • Overcurrent (50, 51)
  • Earth Fault (50G, 50SEF, 51G, 51SEF)
  • High Impedance REF (64H)
  • Under/Over Voltage (27/59)
  • Negative Phase Sequence Voltage (47)
  • Voltage Controlled Overcurrent (51V)
  • Neutral Voltage Displacement (59N)
  • Directional Control of Overcurrent & Earth Fault (67)

SUPERVISION FUNCTIONS

  • CT Supervision (60CTS)
  • Trip & Close Circuit Supervision (74T/CCS)
  • VT Supervision (60VTS)
  • Inrush Detector (81HBL2)
  • Circuit Breaker Fail (50BF)

CONTROL FUNCTIONS

  • Auto Reclose (79)

MONITORING FUNCTIONS

  • Primary/Secondary Current Phases and Earth Direction
  • Primary/Secondary Line and Phase Voltages
  • Apparent Power and Power Factor
  • Real and Reactive Power
  • W Hr & VAr Hr Forward and Reverse
  • Historical Demand Record
  • Positive Phase Sequence (PPS) Voltage & Current
  • Negative Phase Sequence (NPS) Voltage & Current
  • Zero Phase Sequence (ZPS) Voltage

The comprehensive range of Reyrolle products provides the total protection requirements of distribution markets and industrial applications – ranging from overcurrent protection via transformer protection and voltage control to a full spectrum of auxiliary and trip relays. The portfolio includes many famous products such as “Argus, “Duobias”, “Solkor”, “Rho, etc. Through successive generations, Reyrolle numerical products have been developed to increase value to system operators. Discover the portfolio!
