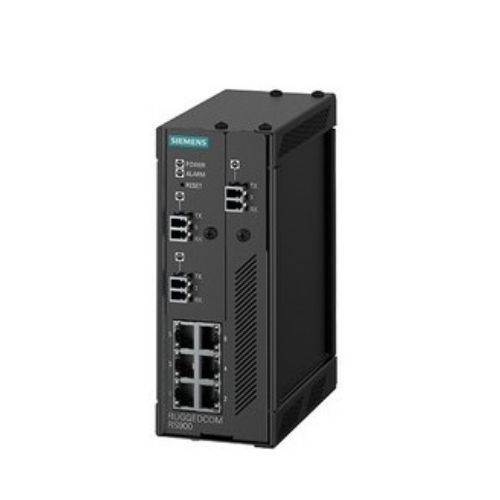

Siemens Ruggedcom RS900C Small Form Factor Managed Ethernet switch

SKU: RS900C Categories: ,

Siemens Ruggedcom RS900C Small Form Factor Managed Ethernet switch

Siemens Ruggedcom RS900C Small Form Factor Managed Ethernet switch has two variants RS900NC and RS900GNC.

1A.) Siemens RS900NC Ethernet Switch:-

The RuggedSwitch® RS900NC is a 9-port industrially hardened, 56-bit encryption fully managed, Ethernet switch specifically designed to operate reliably in electrically harsh and climatically demanding environments. The RS900NC provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curbside traffic control cabinets.

An operating temperature range of -40 to +85°C (-40 to +185°F) coupled with hazardous location certification (Class 1 Division 2) allows the RS900NC to be placed in almost any location. The RS900NC is packaged in a compact, galvanized steel enclosure that allows either DIN or panel mounting for efficient use of cabinet space. The RS900NC provides an integrated power supply with a wide range of voltages (88-300VDC or 85-264VAC) for worldwide operability or dual-redundant, reversible polarity, 24VDC and 48VDC power supply inputs for high availability applications requiring dual or backup power inputs.

The RS900NC’s superior ruggedized design coupled with the embedded Rugged Operating System (ROS®) provides improved system reliability and advanced networking features making it ideally suited for creating Ethernet networks for mission-critical, real-time, control applications. The versatility and wide selection of fiber optics allow the RS900NC to be used in a variety of applications. The RS900NC provides up to three 100Mbps fiber optical Ethernet ports for creating a fiber optical backbone with high noise immunity and long haul connectivity.

1B.) Siemens RS900GNC Ethernet switch:-

The RuggedSwitch® RS900GNC is an industrially hardened,10-Port Managed Ethernet Switch with Gigabit Uplink Ports, 56-bit encryption, fully managed Ethernet switch providing dual-fiber optical Gigabit Ethernet ports and eight Fast Ethernet copper ports. Designed to operate reliably in harsh industrial environments the RS900GNC provides a high level of immunity to electromagnetic interference and heavy electrical surges typical of environments found in electric utility substations, factory floors, or in curbside traffic control cabinets.

An operating temperature range of -40°C to +85°C coupled with hazardous location certification, optional conformal coating, and a galvanized steel enclosure allows the RS900GNC to be placed in almost any location. The embedded Rugged Operating System (ROS®) provides advanced networking features such as Enhanced Rapid Spanning Tree (eRSTPTM), Port Rate Limiting, and a full array of intelligent functionality for high network availability and manageability.

The versatility and wide selection of fiber optics allow the RS900GNC to be used in a variety of applications. The RS900GNC provides two fiber optical Gigabit Ethernet ports for creating a fiber optical backbone with high noise immunity and long haul connectivity. The embedded Rugged Operating System (ROS®) provides advanced layer 2 and layer 3 networking functions, and advanced cybersecurity features. Coupled with the ruggedized hardware design, RS900GNC is ideal for creating mission-critical, real-time, control applications where high reliability and availability are of paramount importance.

RUGGEDCOM products perform at their best when the environment is at its worst, offering fast and reliable communications for electric power, transportation, oil & gas and other industries.

To Explore the Ruggedcom Portfolio with us Click Here!
