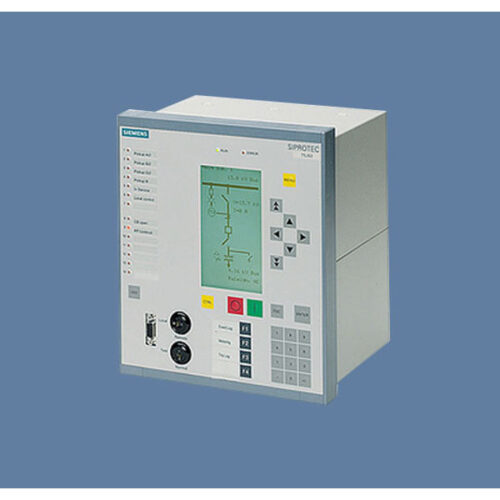

Siemens Siprotec 4 SIPROTEC 7UT63 Protection Relay

The SIPROTEC 7UT63 Protection Relay and 7UT635 differential protection relays are used for fast and selective fault clearing of short-circuits in transformers of all voltage levels and also in rotating electric machines like motors and generators, for short lines and busbars. The protection relay can be parameterized for use with three-phase and single-phase transformers. The specific c application can be chosen by parameterization. In this way, an optimal adaptation of the relay to the protected object can be achieved.In addition to the differential function, a backup overcurrent protection for 1 winding/star point is integrated into the relay. Optionally, a low or high-impedance restricted ground-fault protection, a negative-sequence protection, and a breaker failure protection can be used.

7UT633 features 4 voltage inputs. With this option an overvoltage and under voltage protection is available as well as frequency protection, reverse / forward power protection, fuse failure monitor and overexcitation protection. With external temperature monitoring boxes (thermo-boxes) temperatures can be measured and monitored in the relay. Therefore, complete thermal monitoring of a transformer is possible, e.g. hot-spot calculation of the oil temperature.7UT63x features full coverage of applications without external relays by the option of multiple protection functions e.g. overcurrent protection is available for each winding or measurement location of a transformer.

Other functions are available twice: ground-fault differential protection, breaker failure protection, and overload protection. Furthermore, up to 12 user-define (flexible) protection functions may be activated by the customer with the choice of measured voltages, currents, power and frequency as input variables. The relays provide easy-to-use local control and automation functions.The integrated programmable logic (CFC) allows the user implements their own functions, e.g. for the automation of switchgear (interlocking). User-defi ned messages can be generated as well. The fl exible communication interfaces are open for modem communication architectures with control system.

Transformers are most critical and costly asset in substations. It requires best of the protection for its long life and reliable operation. SIEMENS Transformer Protection Relays takes best care of your transformers by providing best of the technology by virtue of their years long experience in transformer and protection technology.

Various products offered by Siemens for Transformer Protection are 7SR242, 7UT61/62/63/65.

These relays can be used to cater all possibilities for protecting your transformers. Also these relays can be used to protect Motors, Generators, short lines and Busbar.

  • Differential protection for 2- up to 3-winding transformers up to 5 ends (3-/1-phase)
  • Differential protection for motors and generators
  • Differential protection for short 2 up to 5 terminal lines
  • Differential protection for busbars up to 12 feeders (phase-segregated or with summation CT)

Protection functions

  • Differential protection with phase-segregated measurement
  • Sensitive measuring for low-fault currents
  • Fast tripping for high-fault currents
  • Restraint against inrush of transformer
  • Phase /ground overcurrent protection
  • Overload protection with or without temperature measurement
  • Negative-sequence protection
  • Breaker failure protection
  • Low/high-impedance restricted ground fault (REF)
  • Voltage protection functions

Control functions

  • Commands for control of circuit-breakers and isolators
  • 7UT63x: Graphic display shows position of switching elements, local/remote switching by key-operated switch
  • Control via keyboard, binary inputs, DIGSI 4 or SCADA system
  • User-defined logic with CFC

Monitoring functions

  • Self-supervision of the relay
  • Trip circuit supervision
  • Oscillographic fault recording
  • Permanent differential and restraint current measurement, extensive scope of operational values

Communication interfaces

  • PC front port for setting with DIGSI 4
  • System interface IEC 61850 Ethernet – IEC 60870-5-103 protocol, – PROFIBUS-FMS/-DP, MODBUS or DNP 3.0
  • Service interface for DIGSI 4 (modem)/ temperature monitoring (thermo-box)
  • Time synchronization via IRIG-B/DCF 77

SIPROTEC 4 leads the way in integrating protection, control, measurement, and automation functions in one device. The homogenous system platform, the unique DIGSI 4 engineering program, and extensive experience of more than a million successfully operating devices in the field worldwide – thanks to these unique advantages, SIPROTEC 4 enjoys top recognition among users worldwide. SIPROTEC 4 is the industry standard for digital protection technology today in all fields of application.
