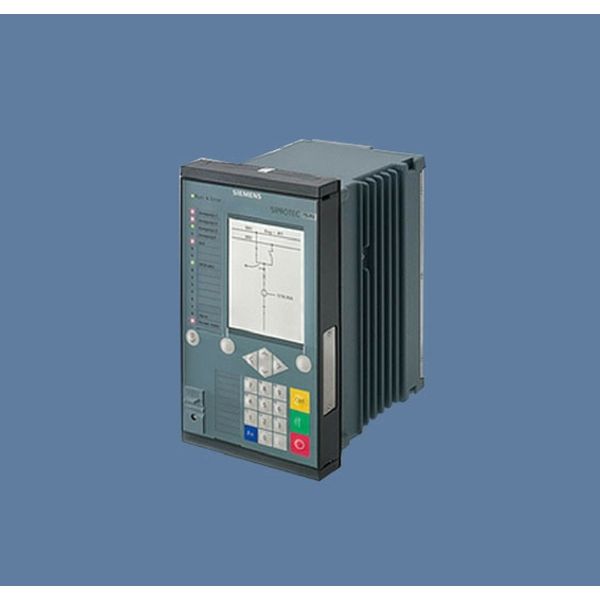

Siemens Siprotec 5 6MD86 Bay Controller Protection Relays

The Siemens SIPROTEC 6MD86 Bay Controller serves as a powerful control and automation device with optional protection functions. It is designed for use across all voltage levels, from distribution to transmission systems.

As a full member of the SIPROTEC 5 protection and control system family, it allows engineers to use a wide range of protection functions from the SIPROTEC library. Consequently, users can apply the same parameters used in other SIPROTEC protection devices, which simplifies engineering and integration.

Moreover, the flexible hardware concept enables precise adaptation to different process data requirements. The device primarily functions as a bay controller for medium- and high-voltage switchgear, ensuring reliable control and monitoring within substations.

In addition, the controller can include an integrated operator panel and key switches as optional features. Engineers can also configure powerful automation functions easily using DIGSI 5 engineering software, which simplifies commissioning and system management.

Furthermore, the device offers extensive input and output options. It includes six predefined standard variants with 8/8 current and voltage transformers. Depending on the configuration, the controller supports 11 to 75 binary inputs and 9 to 41 binary outputs.

Another advantage is its high hardware flexibility. The SIPROTEC 5 modular system allows flexible adjustment of the hardware I/O quantity. Additionally, using a second row expansion enables more than 400 inputs and outputs, which supports complex automation applications.

Finally, the device offers multiple housing width options, ranging from 1/3 × 19-inch to 2/1 × 19-inch, allowing easy installation in different control panels and substation environments.

All functions can be configured freely with DIGSI 5. For the application of some of the functions, you require the appropriate number of free function points within the device. The function point calculator in the online configurator provides support in determining the required number of function points for your device.

FURTHER FUNCTIONS

• Integrated bay controller with versatile protection function from medium to extra-high voltage
• Control of switching devices
• Synchrocheck, switchgear interlocking protection and switchrelated protection functions, such as circuit-breaker failure protection and automatic reclosing
• Integrated electrical Ethernet RJ45 for DIGSI 5 and IEC 61850 (reporting and GOOSE)
• Up to 4 pluggable communication modules usable for different and redundant protocols (IEC 61850, IEC 60870-5-103, IEC 60870-5-104, DNP3 serial and TCP, Modbus TCP, PROFINET IO)
• Redundancy protocols PRP and HSR
• Cyber security in accordance with NERC CIP and BDWE Whitepaper requirements
• Arc protection
• Graphical logic editor to create powerful automation functions in the device
• Optional overcurrent protection with 3-pole tripping
• Also used in switchgear with breaker-and-a-half configuration
• Overcurrent protection also configurable as emergency function
• Secure serial protection data communication, also over great distances and all available physical media (fiber-optic cable, 2-wire connections and communication Networks)
• Capturing operational measured variables and protec-tion function measured values to evaluate the plant state, to support commissioning, and to analyze faults
• Phasor Measurement Unit (PMU)?synchrophasor measured values and IEEE C37.118 protocol integrated
• Powerful fault recording (buffer for a max. record time of 80 s at 8 kHz or 320 s at 2 kHz)
• Auxiliary functions for simple tests and commissioning
• Flexibly adjustable I/O quantity structure within the scope of the SIPROTEC 5 modular system

SIPROTEC 5 is part of the new generation of incomparable modular, flexible, and intelligent digital field devices. With modularly designed hardware and software and its high-performance DIGSI 5 engineering tool, the SIPROTEC 5 product family of field devices are perfect for protection, control, monitoring, and measuring applications in electrical energy systems. SIPROTEC 5 offers a wide product range with modular elements for every application and requirement.
