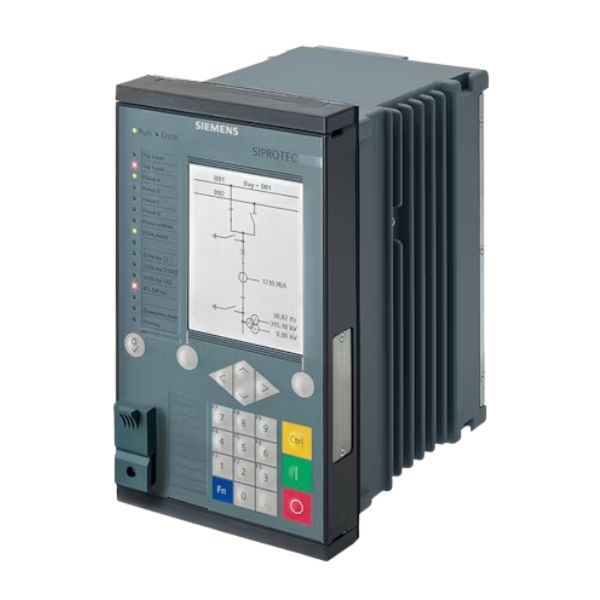

Siemens SIPROTEC 5 7SD82 Line Differential Protection Relay

The Siemens SIPROTEC 5 7SD82 is a compact and cost-optimized numerical relay specifically designed for line differential protection in medium- and high-voltage power systems. Moreover, as part of the SIPROTEC 5 Compact series, it is purpose-built for applications where both space efficiency and cost-effectiveness are critical considerations.

In addition, the relay delivers highly reliable protection for overhead lines and cables by utilizing an advanced adaptive differential protection algorithm. As a result, it ensures exceptional sensitivity and stability, even under demanding operating conditions such as current transformer saturation and the presence of capacitive charging currents. Furthermore, this capability enhances overall system reliability and operational security in complex power networks.

The Siemens SIPROTEC 7SD82 offers fast and accurate fault detection. It operates with a tripping time of around 19 ms, helping isolate faults quickly. This reduces system disturbances and improves overall grid reliability.

The relay is designed for modern substations and supports seamless integration with IEC 61850 communication. Engineers can easily configure it using the DIGSI 5 platform. Its compact design, conformal coating, and robust build make it ideal for both utility and industrial applications that require reliable line protection.

Main Function

• Differential protection for medium- and high-voltage lines
• Suitable for overhead lines and cable systems
• Interoperability with SIPROTEC 4 and SIPROTEC 5 devices

Tripping

• 3-pole tripping
• Minimum tripping time: approx. 19 ms

Inputs and Outputs

• 4 current transformer (CT) inputs
• 4 voltage transformer (VT) inputs
• 11 or 23 binary inputs
• 9 or 16 binary outputs

Hardware Flexibility

• Compact hardware design with fixed I/O structure
• Two predefined quantity structures for binary inputs and outputs
• No additional expansion modules (cost-optimized design)
• Configurable using the DIGSI 5 engineering tool

Housing

• Compact 1/3 × 19-inch housing
• Available with small or large display options
• Conformal coating for operation in harsh environments

Function (Key Features)

• Adaptive differential protection for high sensitivity and stability
• Directional backup protection
• Ground fault detection (various methods: transient, harmonic, admittance-based)
• Fault locator for accurate fault distance calculation
• Arc protection capability
• Phasor Measurement Unit (PMU) functionality
• Power quality monitoring (basic)
• High-speed fault recording and disturbance analysis
• IEC 61850 communication with PRP/HSR redundancy
• Cybersecurity features, including role-based access control
