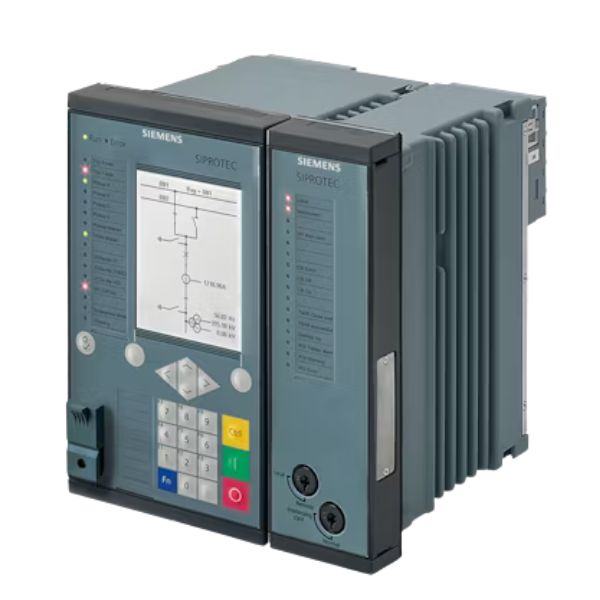

Siemens SIPROTEC 5 7SD86 Line Differential Protection Relay

The Siemens SIPROTEC 5 7SD86 is an advanced modular line differential protection relay designed for protecting medium- and high-voltage transmission lines and cables. Built on the powerful SIPROTEC 5 platform, it offers fast, selective, and highly reliable fault detection to ensure grid stability and operational safety.

With its modular and expandable I/O architecture, the 7SD86 provides maximum flexibility for customized applications. It integrates protection, control, automation, monitoring, and power quality functions within a single device, making it ideal for modern digital substations.

The relay uses advanced differential protection algorithms to maintain high sensitivity and stability even under challenging conditions such as current transformer saturation and network disturbances. It ensures high-speed fault clearance with tripping times as low as 9 ms, improving system reliability and reducing downtime.

Main Function

• Line Differential Protection

Tripping

• 3-pole tripping (minimum ~9 ms)

Technical Specifications

Protection & Functional Features

• Differential protection for overhead lines and underground cables
• High-speed and selective fault detection
• Adaptive differential algorithm for:
  • CT saturation stability
  • Transformer error handling
  • Network disturbance immunity
• Detects:
  • Phase faults
  • Ground faults
• Supports power quality monitoring and PMU functionality

Hardware & Modular Design

• Fully modular and expandable I/O configuration
• Available in 12 standard variants for flexible applications
• Typical configurations:
  • CT/VT: 4/4 or 8/8
  • Binary inputs: 5 to 31
  • Binary outputs: 8 to 46
• Flexible I/O scaling within SIPROTEC 5 platform
• Conformal coating for harsh environmental conditions

Communication & Protocols

• IEC 61850 Edition 2 compliant
• GOOSE messaging for high-speed peer-to-peer communication
• Supports:
  • PRP / HSR redundancy
  • Modbus TCP
• Enables seamless integration into digital substations

Engineering & Software

• Configurable via DIGSI 5 engineering tool
• Graphical logic configuration (CFC)
• Integrated protection, control, automation, and monitoring
• Simplified commissioning, testing, and diagnostics

Advanced / Latest Features (2024–2026 Update)

• Web-based user interface for remote access
• Advanced cybersecurity:
  • Role-based access control
  • Authenticated network communication
• Digital Twin support for simulation and testing
• Process bus ready (Sampled Values support)
• High availability with redundant communication architecture

Applications

• Transmission line protection (HV/EHV/MV)
• Overhead lines and underground cables
• Utility substations
• Industrial power distribution systems
• Backup protection for critical network elements
