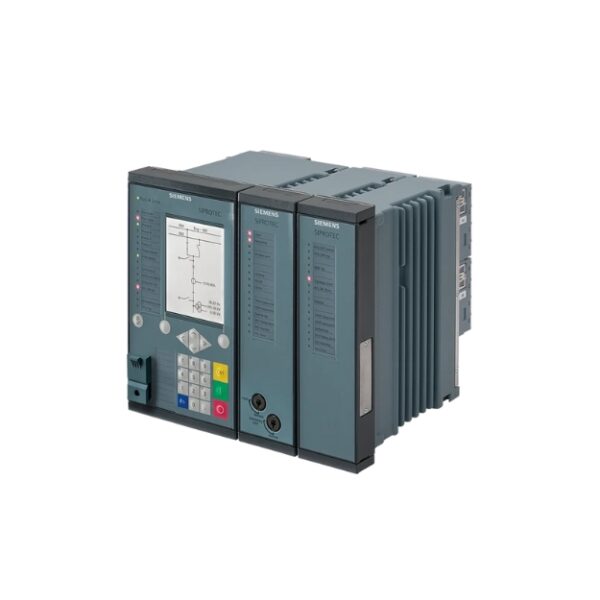

Siemens SIPROTEC 5 7VE85 Paralleling Device

The SIPROTEC 7VE85 Paralleling Device is a high-performance solution for generator synchronization and industrial power system management. Designed with 4 current (4xI) and 4 voltage (4xV) inputs, this modular device supports expandable hardware with up to 8 synchronizing locations, making it ideal for complex setups.

Equipped with IEC 61850 integration, the SIPROTEC 7VE85 ensures seamless communication and advanced protection features, including overcurrent and breaker management. Perfect for industrial applications in Mumbai, it combines reliability, flexibility, and precise synchronization to keep your power systems running smoothly.

Key Features:

• Reliable generator synchronization with the power grid or between systems
• 4xI 4xV inputs for precise monitoring
• Expandable hardware supporting 8 synchronizing locations
• IEC 61850 compatible for digital substation integration

• Modular design for flexible industrial configurations
• Ideal for industrial power systems in Mumbai

Features

Main function

• 1.5- and 2-channel synchronization function

Inputs and outputs

2 predefined standard variants with up

• to 8 current transformers
• 8 voltage transformers
• 7 to 15 binary inputs
• 14 to 20 binary outputs

Hardware flexibility

• Flexibly adjustable and expandable I/O quantity structure within the scope of the modular SIPROTEC 5 system; 1/6 expansion modules can be added, available with large or small display, or without display

Width of housing

• 1/3 × 19 inches to 2 × 19 inches

As standard:

• Conformal coating

The SIPROTEC 5  7VE85 recognizes the operating conditions automatically and reacts in accordance with the settings.

In “Switching synchronous electrical power systems” operating mode the frequency difference is measured with a high level of accuracy. If the frequency difference is almost zero for a long time, this is referred to as a synchronous electrical power system, for which a wider switching angle can be permitted.

The 1.5-channel parallel switching function  is provided for use in small to medium-sized generators and in electrical power systems.

In this example two distinctly independent methods of measurement decide on the switching conditions.
Furthermore, SIPROTEC 7VE85 offers additional current, frequency, power and voltage protection functions and many
other control and monitoring functions. As a result, the paralleling device offers synchronization and protection functions in a single device. With its modular structure, flexibility and the powerful DIGSI 5 engineering tool, the SIPROTEC 7VE85 device offers Future Proof system solutions with high investment security and low operating costs.

The following modes of operation are covered:

• Switching synchronous/asynchronous electrical power systems
• Switching to de-energized line or dead busbar
• Synchro-check function
• Adjusting commands for voltage and frequency (speed)
