Siemens Reyrolle 7XG31 Arc Protection Relay

Reyrolle 7XG31 Arc Protection relay

The arc is detected using an optical sensor & the signal input to a protection device which also monitors the load current on the system. Conventional current based protection techniques are at times challenged by the nature of arcing faults, and can result in slow protection clearance times. Slow protection clearance times increase the risk to nearby personnel and increase the degree of damage to plant and equipment. By employing an optical detection technique, arc fault protection results in fast clearance of arcing faults.

When an arc fault start current is coincident with a signal from the optical sensor a trip command is output. An arc trip only signal can be achieved within 10ms which can be considerably faster than that provided by a traditional IDMT overcurrent relay. This is because the onset of an arcing fault can occur at relatively low fault currents. Arguably the greatest risk of arc fault damage exists at the CB cable termination & in the CB chamber itself due to the slow clearance times of the IDMT feeder protection.

The ReyArc range of protection devices provide multiple arc fault protection schemes depending on your protection system requirements:

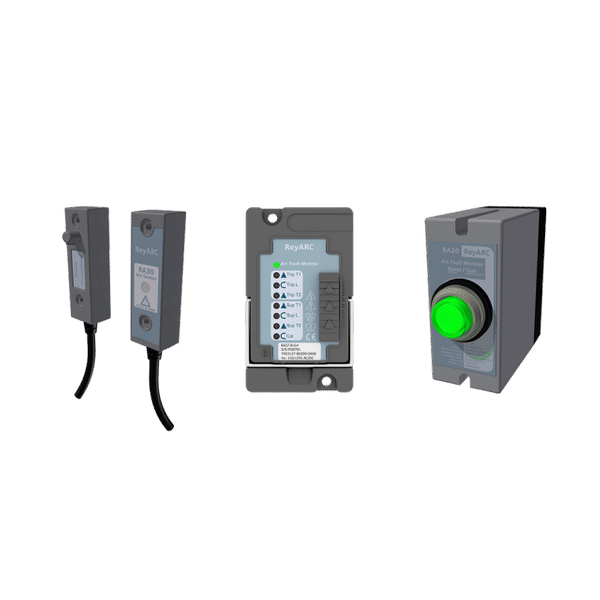

ReyArc Arc Protection range:

7XG3120 Arc Fault Monitor Relay, with 2 or 3 arc point sensor inputs, 2 separate tripping- duty outputs.

7XG3123 ARC Fault Interface Module, with 1 or 2 arc point sensor inputs, high-speed binary output to interface with protection relay binary input.

7XG3124 Arc Fault Monitor, with IEC 61850 and up to 16 arc sensor inputs, 2 tripping-duty outputs.

7XG3127 Arc Fault Monitor, with 4 arc point sensor Inputs and 1 linear sensor input, 2 separate tripping zones with 4 output tripping contact and 1 supervision contact.

7XG3130 High-Speed Arc Sensor, with 1 or 2 optical point sensors per unit.

7XG3140 High-Speed Linear Arc Sensor, with optional sensor length up to 40 metres

The comprehensive range of Reyrolle products provides the total protection requirements of distribution markets and industrial applications – ranging from overcurrent protection via transformer protection and voltage control to a full spectrum of auxiliary and trip relays. The portfolio includes many famous products such as “Argus, “Duobias”, “Solkor”, “Rho, etc. Through successive generations, Reyrolle numerical products have been developed to increase value to system operators. Discover the portfolio!
