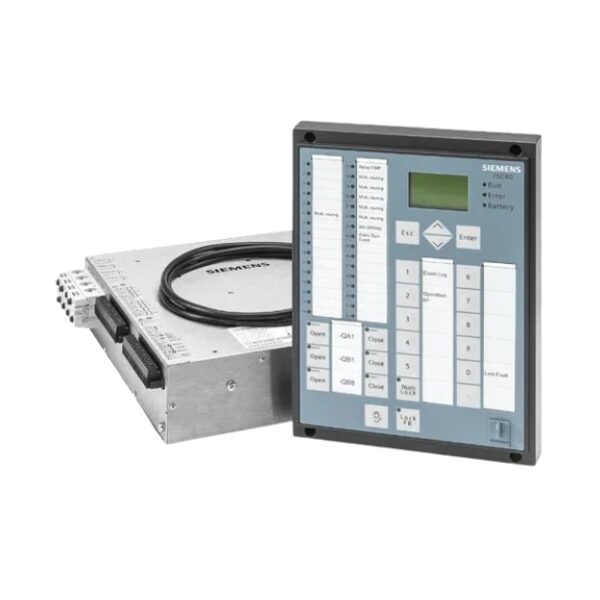

Siemens SIPROTEC 7SC80 Feeder Automation Controller.
The SIPROTEC 7SC80 Feeder Automation Controller is a versatile Siemens solution designed for medium-voltage distribution networks. Available in Mumbai, this advanced feeder automation controller ensures reliable protection, flexible automation functions, and seamless integration with smart grid systems.
Ideal for both industrial and utility applications, the SIPROTEC 7SC80 offers programmable logic for custom protection schemes, interlocking, and load-shedding programs, making it highly adaptable to complex network requirements. With comprehensive monitoring and diagnostic capabilities, it enhances operational efficiency while safeguarding your feeders against faults and abnormal conditions.
Whether you’re upgrading your substation automation or implementing smart grid solutions, the SIPROTEC 7SC80 Feeder Automation Controller provides trusted Siemens quality. Additionally, ensuring dependable performance and maximum network reliability.
Features of Siemens SIPROTEC 7SC80 Feeder Automation Controller
Additional primary switching devices (grounding switches, transfer switches and isolating switches) can also be controlled from the relay. Automation or PLC logic functionality is also implemented in the device. The integrated programmable logic (CFC) allows the user to add own functions, e.g. for the automation of switchgear (including: interlocking, transfer and load shedding schemes). The user is also allowed to generate user-defined messages. The upgrade of device and communication firmware is also possible via Ethernet.
- Support of feeder automation applications, e.g. fault isolation and service restauration
- Designed for harsh environment
- Extended temperature range –50 °C up to 85 °C
- Open for all different communication technologies, e.g. radio, which are used for feeder automation
- Integrated GPS module is available for time synchronisation
- Full remote access supported for firmware and parameter updates and upgrades
- A web based HMI provides complete remote control of the device
- 9 programmable function keys
- 6-line display
- Integrated switch for low-cost and redundant optical rings.
- Parallel running communication protocols
- Redundancy protocols RSTP, PRP and HSR for highest availability
- Current Jump detector
- Extended CFC capabilities
- 24 km Single mode interface
- RTU version without protection features
- Secondary current transformers values (1 A / 5 A settable using DIGSI)
- Buffer battery exchangeable from the side
- USB front port
- Relay-to-relay communication through Ethernet with IEC 61850 GOOSE
- Stainless steel housing
- Millisecond-accurate time synchronization through Ethernet with SNTP
- Inputs for Low power CTs and VTs according IEC 61869-6 (formerly IEC 60044-7 and IEC 60044-8)
