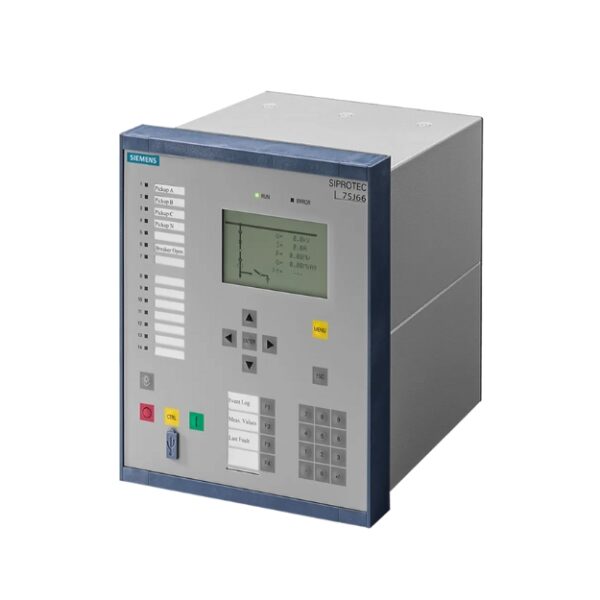

Siemens SIPROTEC 7SJ66 Protection Relay

Siemens Siprotec 4 SIPROTEC 7SJ66 Protection Relay  – 4xI 4xV, 8 line or graphical display, directional

The Siemens SIPROTEC 7SJ66 Protection Relay is a high-performance, multifunctional numerical protection relay. Especially designed for reliable motor and overcurrent protection in industrial and utility applications. Equipped with 4 current (I) and 4 voltage (V) inputs, this relay delivers precise measurement and control. Consequently, ensuring maximum system safety.

Featuring an 8-line graphical display and advanced directional protection functions. Moreover, the SIPROTEC 7SJ66 provides intuitive monitoring, quick diagnostics, and seamless integration with modern control systems. Its versatile protection features make it ideal for medium-voltage systems. Additionally, it allows you to safeguard motors, transformers, and other critical equipment efficiently.

Available from trusted suppliers in Mumbai. However, the SIPROTEC 7SJ66 Protection Relay combines cutting-edge Siemens technology with local availability, making it easy to purchase and deploy. Specially, for industrial, commercial, and utility projects. However, it ensures dependable performance, enhanced operational safety, and optimized system reliability with this multifunctional protection relay.

Key Features:

• Multifunctional numerical relay for motor and overcurrent protection
• 4xI 4xV inputs for precise measurements
• 8-line graphical display for easy monitoring and diagnostics
• Directional protection for enhanced system safety
• Ideal for industrial and utility applications in Mumbai
• Available from trusted local suppliers

Control functions/programmable logic:

• Commands for control of CB and of isolators
• Graphical visualization of switch positions
• Control via keyboard, binary inputs, DIGSI 4, or SCADA system
• User-defined logic with CFC (e.g., interlocking)

Monitoring functions:

• Operational measured values V, I, f
• Energy metering values Wp, Wq
• Circuit-breaker wear monitoring
• Slave pointer
• Trip circuit supervision
• Fuse failure monitor
• 8 oscillographic fault records
• Motor statistics

Languages:

• English, Spanish, Russian, Polish, and Turkish

Communication interfaces

• System interface protocols: IEC 60870-5-103, IEC 61850, Modbus RTU, DNP3
• Electrical and optical interface
• RSTP (Redundancy Protocol for Ethernet)
• Service interface for DIGSI 4 or RTD-Box
• Front USB interface for DIGSI 4
• Time synchronization via IRIG B, DCF77

Siemens SIPROTEC 4 leads the way in integrating protection, control, measurement, and automation functions in one device. Moreover, the homogenous system platform, the unique DIGSI 4 engineering program. Consequently, extensive experience of more than a million successfully operating devices in the field worldwide – thanks to these unique advantages. Additionally, SIPROTEC 4 enjoys top recognition among users worldwide
