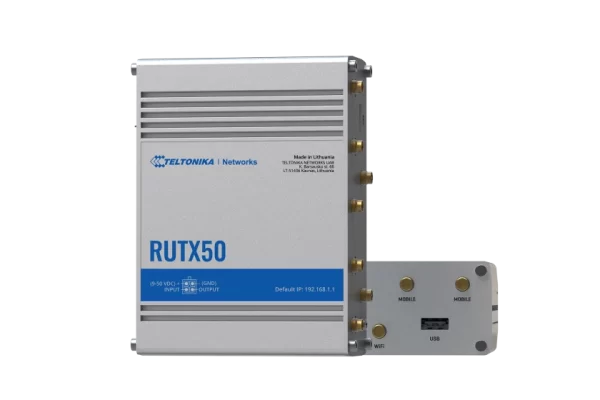

Teltonika RUTX50 5G Router

The Teltonika Industrial 5G Router RUTX50 is a multi-network router with two SIM slots that provides 5G mobile connectivity for applications requiring a lot of data and speed. It has dual-band Wi-Fi and five Gigabit Ethernet connections in addition to data connection redundancy with auto-failover. Long-term expandability is made possible by different interfaces and backward compatibility.

---

Mobile:
5G Sub-6Ghz SA/NSA 900/600 Mbps UL (2×2), 2.1/3.3Gbps DL (4×4 MIMO); LTE Cat. 20 2.0Gbps DL, 200Mbps UL; 3G 42 Mbps DL, 5.76 Mbps UL; 4G (LTE).

Flash memory & RAM
256 MB Flash, 256 MB RAM

Powering option
4-pin power socket, 9-50 VDC.

Sim Switch
Two SIM cards, including auto-switch scenarios for poor signal, data and SMS limits, roaming, network failure, no network, failed data connection, and SIM idle protection.

Ethernet
5 x RJ45 ports, 10/100/1000 Mbps:
1 x WAN

Wi-Fi
IEEE 802.11b/g/n 2.4GHz, IEEE
802.11a/n/ac 5GHz, Access point (AP),
Station (STA)

Teltonika RUTX50 5G Router Measurements & weight
132 x 44.2 x 95.1 mm, 533 g

Housing & mounting
Aluminum housing with the ability to be installed on a DIN rail.

Status
Data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC are identified variables. Other variables include bandwidth, linked band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, and operator and operator state.
