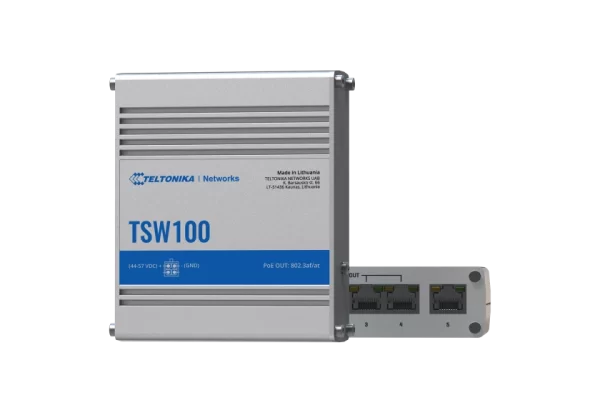

Teltonika TSW1000000A0 Ethernet Switches

The Teltonika TSW1000000A0 Ethernet Switches Industrial POE+ Ethernet Switch, TSW100, is an unmanaged Gigabit Ethernet switch supporting Power-over-Ethernet. Classified as power source equipment (PSE), it centralizes the power supply, providing up to 30 watts per port and reducing installation effort. Five Gigabit Ethernet ports provide an economical high-bandwidth solution for a secure industrial Ethernet network.

---

Powering option
4-pin power socket, 7-57 VDC (input voltage range for PoE 44-57 VDC)

PoE standard & Total PoE power
budget (at PSE) 802.3af and 802.3at, 120 W
Port 1- 4

Teltonika TSW1000000A0 Ethernet Switches
5 x RJ45 ports, 10/100/1000 Mbps, allows for automatic MDI/MDIX crossover.
4 x PoE, 1 x Uplink

IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Bandwidth (non-blocking)
10 Gbps

POE Out
PoE ports
Port 1- 4
PoE standards
802.3af and 802.3at Alternative B
PoE Max Power per Port (at PSE)
30 W
PoE Power Budget (at PSE)
120 W

Packer buffer
128 KB

MAC address table size
2K entries

Physical Interfaces Ethernet

5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs
1 x Power LED, 10 x ETH status LEDs
Power
1 x 4-pin power connector
Other
1 x Grounding screw

Housing & mounting
Aluminium housing with DIN rail mounting option

Measurements & weight
115 x 32 x 95 mm, 350 g
