CT / PT Tester, Analyzer Udey Test Kits

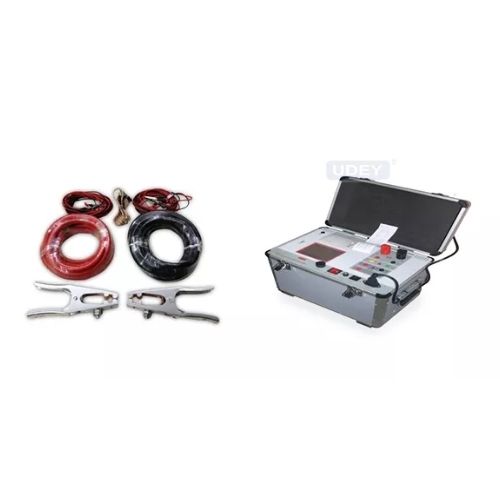

Model : CTPT – 81, CT / PT Tester

CTPT-81 is a new generation, micro-processor operated digital instrument. Display is on big screen LCD with human computer dialogue operation. It only needs to set highest voltage and maximum current, then the instrument can follow the instructions and automatically step up, up word increase, automatically record the test data, automatically draw voltampere feature curve, and can save and print. The tester does away with manual voltage adjustment, manual recording and curve drawing.

Machine Feature

CURRENT TRANSFORMER : CT

Magnetization Curve
Transformation Ratio Test
Polarity
5& & 10 % errore curve
Current Injecting
Demagnetization
Power Frequency Withstand Test
Automatic Calculation of Excitation
Knee Point Value

VOLTAGE TRANSFORMER : PT

Excitation Characteristics Test
Transformation Ratio Test
Polarity
Power Frequency Withstand Test
Demagnetization
Automatic Calculation of Excitation Knee Point Value

Machine Technical Specification

POWER SUPPLY	230V± 10% AC, 50-60 Hz
O / P VOLTAGE	Excitation Characteristics : 0 ~ 1000 Volts
O / P CURRENT	Excitation : 0 ~ 15 Amp
CURRENT INJECTION	0 ~ 600 Amp
ACCURACY DISPLAY	± 0.5% :Back lit large LCD
MEMORY	3000* results
PRINTER	Built in Printer
PC INTERFACE	USB Flash disc
CONSTRUCTION	Aluminum Cabinet
USE ENVIRONMENT	Temperature: Max 45°C Relative Humidity : 80% non-condensing
DIMENSION	L x W x 0 x 20 x 26cm Approx.
WEIGHT	18 kg Approx.

Apart from high voltage testers, we are also known for supplying high quality Electrical Measurements and Measuring Instruments. These instruments are produced by keeping global standards in mind, and thus they are obvious choices for the leading industrial plants these days.

Our products are based on present industrial demands. With the growing needs or critical instruments for Ultra High Voltage, our team is continuing TO research on inventing the upgraded devices to meet the needs of the industrial plants with precision.
