Oil Resistivity Tester Oil Tan Delta Tester Udey Test Kits

SKU: UTK_23 Category:

Oil Resistivity Tester Oil Tan Delta Tester Udey Test Kits

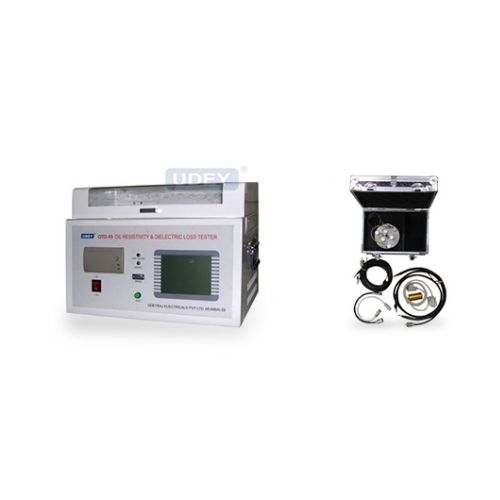

Model : OTD-45, Udey Oil resistivity tester

OTD-45 is single self contained unit containing oil test cell, high frequency induction heating with temperature controller/sensor; dielectric loss measuring bridge, AC test voltage source, SF6 filled standard capacitor; high resistance meter; DC voltage source and all digital circuits. Large screen LCD displays each step, tips and measurements. Built-in printer prints the test results.


Machine Feature

  • Maximum output of2 k\L
  • Stainless Steel 3 terminai oil test ceil.
  • Memory storage and recall of test resutts
  • I-Touch LCD screen.



Machine Technical Specification

Input voltage 220V±10% AC, 45 to 60 Hz
Output voltage 1000V to 2000V in steps of 200V
Output voltage Accuracy: ±2%
Output current 25mA maximum
Display LCD display [240 x 180]
Printer Thermal built-in.
Controls Keypad
Indicators Status: HV; Heating;
Oil cell S S of size 70mm (D) x 120 mm (H).
3 pole, electrode distance of 2mm,
Cell capacitance 60±2pF
Oil cell voltage 2000V maximum
Heating Type : High freq. induction heater of 500W maxi.
Temp. range : < 100˚C
Temp. error : 1˚C
Measuring parameters : Range : 0.000% to 100.0%
Tan delta : Accuracy : 1% of reading + 20 digits
Capacitance : Range : 15.0pF to 300pF
: Accuracy : 1% of reading + 1pF
Resistance : Range : 10 Mohm to 10 Tohm
: Accuracy : 10% of reading
Volume resistivity Calculated automatically and displayed.
Environmental Relative humidity : up to 50˚C
Relative humidity : < 90% non-condensing
Dimensions Size : W x D x H: 45 x 31 x 36 cm

Weight : 20 kg



Apart from high voltage testers, we are also known for supplying high quality Electrical Measurements and Measuring Instruments. These instruments are produced by keeping global standards in mind, and thus they are obvious choices for the leading industrial plants these days.

Our products are based on present industrial demands. With the growing needs or critical instruments for Ultra High Voltage, our team is continuing TO research on inventing the upgraded devices to meet the needs of the industrial plants with precision.

For electric power utility companies, our high voltage testers are considered as the first choice, as our product offers reliability, safety and accuracy. Not just for domestic industrial plants, but our products are exported outside India, in various leading industrial manufacturing companies of different countries.
