DC Hipot Testers DPC series Udey Test Kits

DC Hipot Testers DPC series hipots are used for proof testing of high voltage equipment in power engineering. Routine testing of the insulation and leakage is a necessary requirement for electrical equipments. Other areas include: Cable breakdown testing, capacitor charging and general laboratory use.

Model : DPC-60-5 DPC-80-5 DPC-120-5

Machine Feature

Portable: 60kV-5mA; only 10kg. Over voltage protection setting. Digital readout of test voltage & leakage current. Optional Extra mA meter to measure leakage in HT. Aluminum alloy cabinet with cover with handle.
Easy to carry as small dimension and low weight.

Machine Technical Specification

Supply Power		230V AC + /- 10%, 50 Hz.
Output Voltage		As per model
Output Current		As per model
Ripple Factor		< 3%
Trim mA		1 to 1.1 times rated current
Rating		Intermittent [15 min ON/OFF]
Accuracy HT setting		<1.5%
Meters		Digital display: kV and mA
Measurement accuracy		3% max + /- 2 digits
Environment Termparature		45 C max
Stirrer		Automatic (60 Seconds).
Timer		Automatic (60 Seconds).
Enclosure		Aluminium metal cabinet with cover and lifting handles.
Ralative Humidity		Non-condensing: 80% max
Cabinet		Aluminum cabinet with handle
Model	DPC-60-5		DPC-80-5	DPC-120-5
Voltage Output	0-60kV DC		0-80kV DC	0-120kV DC
Current output	5mA		5mA	5mA
Trip level	5 to 5.5mA		Control+HT unit	Control+HT unit
Construction	Control+HT unit		5 to 5.5mA	5 to 5.5mA
Dimensions cm : app.	CU : 39 x 28 x 25 HT : 57 x 20 x 23		CU : 39 x 28 x 25 HT : 81 x 25 x 25	CU : 39 x 28 x 25 HT : 81 x 25 x 25
Weight kg app.	CU:6  HT:4		CU:8  HT:10	CU:8  HT:10

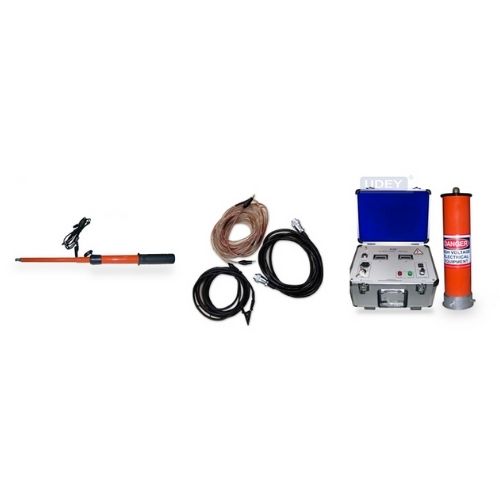

Standard Accessories

Molded mains cord – 1No.
HV Test leads for 60 kV model only – 1No.
Earth cable, 4 meter long – 1No.
Discharge rod – 1No.

Explore the comprehensive range of Udey test kits click here!
