Fully Automatic TRT-27 Series Transformer winding Resistance Testers Udey Test Kits

Model : TRT-27-10 TRT-27-20 TRT-27-40, Fully Automatic TRT-27 series

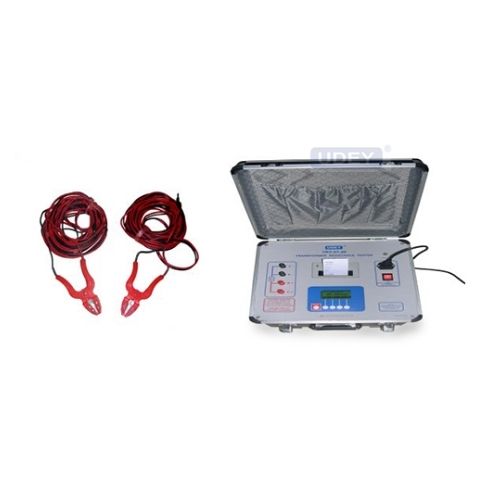

Description: UDEY TRT-27 is a new generation, digital resistance meter using 4 terminal measurement technique. Built in printer for printing results. The entire test is done quickly. TRT-27 generates constant current, powers up the test current, takes the readings, and displays the results on the LCD screen. The TRT-27 is encased in an aluminum alloy cabinet.

Machine Feature

The advantages of TRT-27

• Quick speed measurement of resistance
• High precision of class 0.2, good repetitiveness
• Digital display-of resistance and test current
• Automatic discharge and discharge warning
• True 4 terminal measurement No lead compensation required
• Saves 255 test results
• Built-in printer
• Optional:RS-232 interface



Machine Technical Specification

MODEL	TRT – 27 – 10	TRT – 27 – 20	TRT – 27 – 40
TEST CURRENT	10 / 5 / 1 / 0.01 AMP	20 / 10 / 5 / 1 AMP	40 / 20 / 10 / 5 /2.5 A
RANGE	10 A : 1µ – 2Ω 5 A : 1µ – 4 Ω 1 A : 1µ – 20Ω 0.01 A : 1µ – 2Ω	20 A : 1µ -1Ω 10 A : 1µ – 2 Ω 5 A : 1µ – 4 Ω 1 A : 1µ – 20Ω	40 A : 1µ -.05Ω 20 A : 1µ – 1 Ω 10 A : 1µ – 2 Ω 5 A : 1µ – 4 Ω 2.5 A : 1µ – 8 Ω
POWER	300 WATT	500 WATT	900 WATT
DISPLAY	4.5 Digit, LCD displays resistance and test current
ACCURACY	±0.2 % ± 3 digits
RESOLUTION	0.1 μΩ
PRINTER	Built-in printer
POWER SUPPLY	230V ± 10%, AC 50 Hz single phase	[120V  made to order]
OPTIONAL	RS – 232 interface
DIMENSIONS	400 X 200 X 265	400 X 210 X 510	440 X 230 X 550
WEIGHT	6 kg	10 kg	13 kg
AMBIENT	Max up to 40 deg C / RH 85% non condensing



Standard Accessories

• Flexible testing leads with alligator clamp -1 pair.
• Mains connecting cable.
• Earth Cable.
• Paper roll for printer, 1 no.
• Spare fuses 2 nos.
• Operating manual 1 no.
