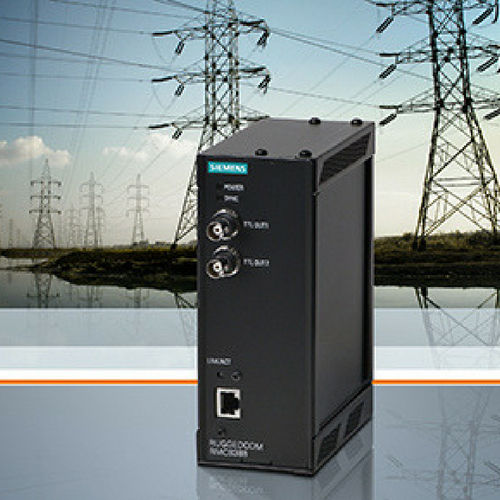

Siemens Ruggedcom RMC8388 Media Converters

SKU: Ruggedcom_RMC8388 Categories: ,

SIEMENS RUGGEDCOM RMC8388 MEDIA CONVERTERS

The Ruggedcom RMC8388 Media Converters are the rugged, small form factor time converter that converts PTP (IEEE 1588) to IRIG-B or PPS time signals. The RUGGEDCOM RMC8388 saves high maintenance costs on legacy coax cabling by allowing their replacement with standard Ethernet cabling for both communications and timing purposes, all the way to the switchyard cabinets.The RUGGEDCOM-Selector lets you configure RUGGEDCOM products quickly, easily, and efficiently, by using targeted navigation through selection menus or by entering item numbers. Selected products can then be ordered directly by transferring the parts list into the Industry Mall.

Ruggedcom RMC8388 Media Converters Time Interface Specifications

  • IRIG-B: Unmodulated (PWM) and Amplitude Modulated (sine wave)
  • PPS

Ruggedcom RMC8388 Media Converters PTP Specifications

  • PTP version 2 (IEEE 1588) supported
  • 100 FX, multimode, 2 km, LC Ethernet port fiber optic
  • 100 TX , RJ45 / FastConnect™ Ethernet port copper
  • Power, P2P and E2E profiles supported
  • IEEE 1344, C37.118-2005, C37.118-2011 PMU protocol support

POWER SUPPLY OPTIONS

  • 24 nominal: 11 – 36 VDC

RUGGED RATED FOR RELIABILITY IN HARSH ENVIRONMENTS

  • Immunity to EMI and heavy electrical surges
    – Zero-Packet-Loss™ technology
    – Meets IEEE 1613 (electric utility substations) Class 1 with copper ports or Class 2 with all fiber ports
    – Exceeds IEC 61850-3 (electric utility substations)
  • -40 °C to +85 °C operating temperature (no fans)
  • Conformal coated printed circuit boards (optional)

IRIG CONFIGURATION OPTIONS

  • B000 – B007, B120 – B127 IRIG formats supported

PPS CONFIGURATION OPTIONS

  • 1 to 200 ms configurable pulse width
  • 1 to 86400 seconds configurable pulse interval

RUGGEDCOM products perform at their best when the environment is at its worst, offering fast and reliable communications for electric power, transportation, oil & gas and other industries. To Explore the Ruggedcom Portfolio with us Click Here!

Proven reliability

When it comes to RUGGEDCOM products: Siemens conducts Highly Accelerated Life Testing (HALT) in the early stages of product development to detect any design or performance issues as well as Highly Accelerated Stress Screening (HASS) later to ensure that customers get orders free of manufacturing errors and random defects. RUGGEDCOM products are thus able to provide reliable and error-free operation in harsh industrial environments.

High immunity

The proliferation of IP networking technology in real-time, mission critical control applications requires a level of immunity to electromagnetic interference (EMI) beyond what is currently delivered by commercial grade networking products. Technology used in RUGGEDCOM products is able to withstand all EMI type tests required by IEC 61850-3 without any communications loss or delays. Products with this technology also qualify as IEEE 1613 class 2 error-free devices. This innovation – known as Zero Packet Loss™ technology – is designed to provide the same level of EMI immunity as protective relaying devices.

Trusted security

RUGGEDCOM products do not just offer immunity against electromagnetic interference, they also come with a variety of advanced cybersecurity features. These include multilevel user passwords, SSH/SSL (128-bit encryption), enable/disable ports, MAC-based port security, VLAN (802.1Q) to segregate and secure network traffic, RADIUS centralized password management, as well as SNMPv3 authentication and 56-bit encryption.
