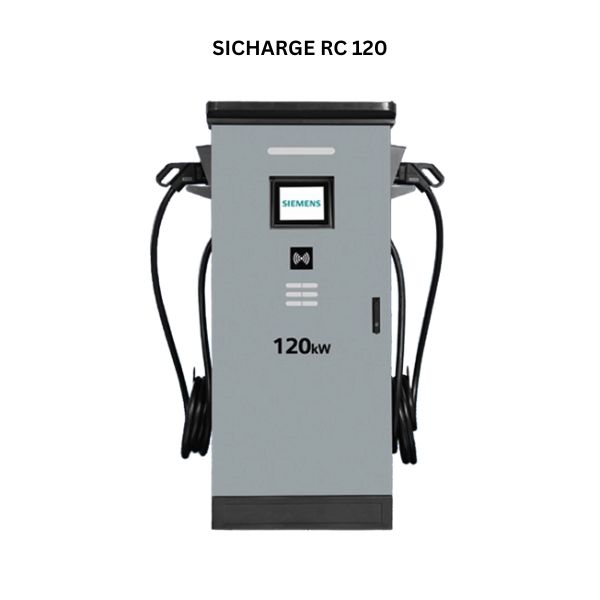

Siemens SICHARGE RC 120 DC Fast Charger

The Siemens SICHARGE RC 120 is a high-performance 120 kW DC fast charging station designed to support the growing demand for electric vehicle charging infrastructure. Engineered for reliability, efficiency, and future readiness, this advanced charger delivers rapid charging for a wide range of EVs, making it an ideal solution for highway charging stations, EV dealerships, eBus depots, eTruck terminals, commercial parking facilities, and fleet operators.

With dual CCS2 charging connectors, dynamic power sharing, and support for current and future electric vehicle technologies, the Siemens SICHARGE RC 120 provides a seamless and intelligent charging experience while maximizing operational efficiency.

Key Features of Siemens SICHARGE RC 120

120 kW High-Speed DC Charging

The Siemens SICHARGE RC 120 delivers up to 120 kW of charging power. Then, significantly reducing charging times and enabling quick turnaround for electric vehicles.

Dual CCS2 Charging Connectors

Then, equipped with 2 x CCS2 charging cables. Therefore, the charger can serve multiple compatible electric vehicles efficiently while supporting modern EV charging standards.

Dynamic Power Sharing

The intelligent power-sharing system provides:

• Up to 120 kW output on a single charging gun
• Up to 60 kW per connector during dual-gun operation

As well as, This ensures optimal utilization of available power and enhanced charging flexibility.

Future-Ready EV Charging Solution

Supporting charging standards such as IEC 61851-1/23/24 and ISO 15118. Moreover, the Siemens SICHARGE RC 120 is designed to remain compatible with both current and next-generation electric vehicles.

Reliable and Robust Design

Therefore, built for indoor and outdoor installations, the charger features:

• IP54-rated enclosure protection
• Durable painted mild steel housing
• Wide operating temperature range from -10°C to +50°C

However, these features ensure dependable performance in demanding environments.

Advanced Safety Features

Safety is prioritized through:

• Emergency Stop Button
• MCCB Protection
• Fuse Protection
• Surge Protection Device (SPD)
• Earth Fault Relay

These integrated protections help ensure safe charging operations for both users and equipment.

Technical Specifications

• Model: SICHARGE RC 120
• Rated Output Power: 120 kW
• Output Voltage Range: 200 V – 1000 V
• Maximum Output Current: 250 A
• Charging Connectors: 2 × CCS2
• Input Voltage: 415 V ±10%
• Frequency: 50 Hz
• Efficiency: ≥ 94.5%
• Power Factor: > 0.99
• Communication Protocols: OCPP 1.6J, Modbus TCP
• Network Connectivity: Ethernet, 3G, 4G
• User Interface: 9.7-inch Touchscreen HMI with Status LED
• Protection Rating: IP54
• Operating Temperature: -10°C to +50°C
• Dimensions: 800 × 500 × 1885 mm
• Weight: Approximately 350 kg

Applications

The SICHARGE RC 120 is ideally suited for:

• Public EV charging stations
• Highway fast-charging corridors
• Commercial fleet charging
• EV dealerships
• Bus depots
• Truck charging terminals
• Smart city infrastructure projects
• Commercial and industrial EV charging networks

Why Choose Siemens SICHARGE RC 120?

Moreover, the Siemens SICHARGE RC 120 offers fast charging, smart power management, advanced safety features, and future-ready technology in a compact and durable design. Therefore, its dual-connector design and smart power-sharing feature make it a cost-effective choice for operators looking for reliable and scalable EV charging solutions.
