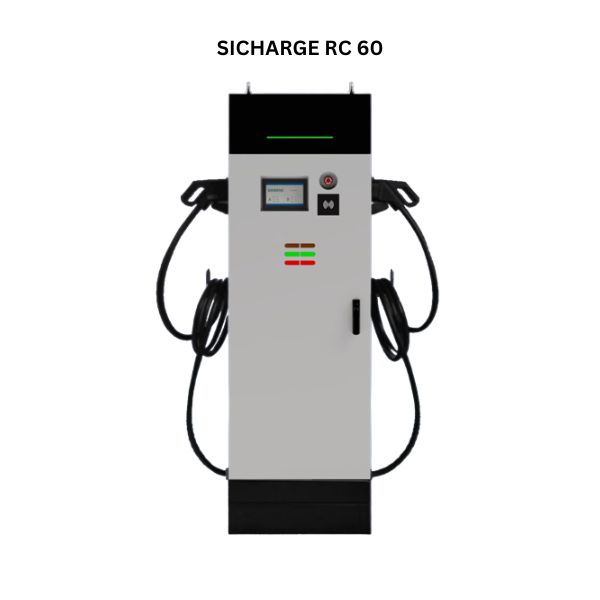

Siemens SICHARGE RC 60 – High-Performance 60 kW DC Fast EV Charger

The Siemens SICHARGE RC 60 is a compact and future-ready 60 kW DC fast charging station designed to deliver reliable, efficient, and intelligent EV charging for public and commercial applications. Equipped with dual CCS2 charging connectors, this advanced charger supports a wide range of current and next-generation electric vehicles, making it an ideal solution for charging infrastructure operators, commercial buildings, EV dealerships, and residential communities.

With its dynamic power-sharing capability, the Siemens SICHARGE RC 60 can provide the full 60 kW output on a single charging gun or distribute 30 kW per connector during simultaneous charging, ensuring maximum utilization and operational flexibility. Its robust construction, IP54 protection rating, and advanced connectivity options make it suitable for both indoor and outdoor installations.

Key Features of Siemens SICHARGE RC 60

• 60 kW DC fast charging capability
• Dual CCS2 charging connectors
• Dynamic power sharing technology
• Compact, low-footprint design
• Compatible with current and future EV models
• 7-inch touchscreen HMI with status LED indicators
• RFID authentication support (offline and online)
• Ethernet, 3G, and 4G connectivity options
• OCPP 1.6J compliant for network interoperability
• ISO 15118 support for future-ready communication
• High efficiency of ≥ 94.5%
• IP54-rated enclosure for outdoor applications
• Integrated safety devices, including MCCB, Fuse, SPD, and Earth Fault Relay
• Emergency stop button for enhanced safety

Technical Specifications

• Rated Power: 60 kW
• Output Voltage Range: 200 V – 1000 V DC
• Maximum Output Current: 150 A
• Input Voltage: 415 V ±10%
• Frequency: 50 Hz
• Power Factor: > 0.99
• Efficiency: ≥ 94.5%
• Charging Connectors: 2 × CCS2
• Cable Length: 5 meters
• Operating Temperature: -10°C to +50°C
• Enclosure Protection: IP54
• Communication Protocols: OCPP 1.6J, Modbus TCP
• Network Connectivity: Ethernet, 3G, 4G
• User Interface: 7-inch Touchscreen HMI
• Dimensions: 650 × 390 × 2050 mm
• Weight: Approximately 260 kg

Applications of Siemens SICHARGE RC 60

The Siemens SICHARGE RC 60 DC Fast Charger is designed for a wide range of EV charging environments, including:

• Public charging stations
• Commercial buildings and business parks
• EV dealerships and service centers
• Residential societies and housing complexes
• Fleet charging hubs
• Highway and urban charging networks

Benefits of Siemens SICHARGE RC 60

Future-Ready Charging Infrastructure

Supports a broad range of electric vehicles and complies with modern charging standards, ensuring long-term investment protection.

Dynamic Power Distribution

Smartly shares charging power between two connectors, helping improve charger usage and providing a better charging experience for users.

Reliable Performance

Engineered by Siemens to deliver consistent charging performance with high operational uptime.

Enhanced Safety

Built-in protection systems and an emergency stop function ensure safe operation for users and operators.

Smart Connectivity

Advanced communication protocols enable seamless integration with charging management platforms and smart energy systems.

Why Choose Siemens SICHARGE RC 60?

The Siemens SICHARGE RC 60 combines fast charging performance, intelligent power management, robust safety features, and future-proof technology in a compact design. Whether you are growing a public charging network or setting up EV charging for commercial use, this charger provides a reliable and flexible solution to meet the increasing demand for electric vehicles.
