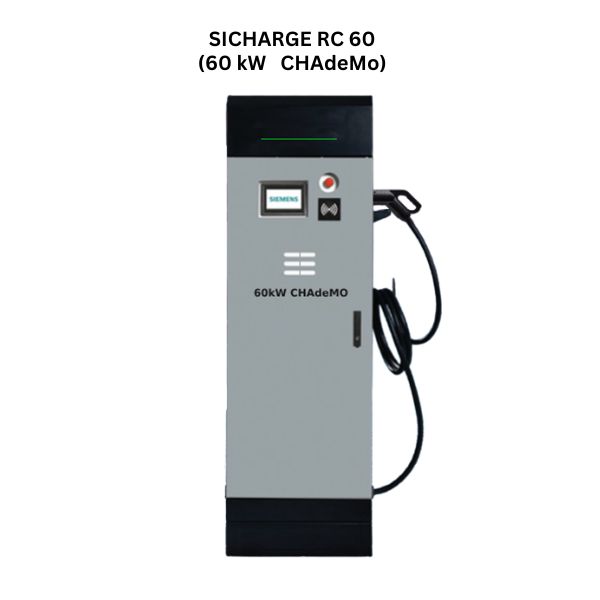

Siemens SICHARGE RC 60 CHAdeMO DC Fast Charger

The Siemens SICHARGE RC 60 CHAdeMO is a compact, high-performance DC fast charging solution designed to support the growing electric vehicle infrastructure. Engineered for public charging stations, commercial buildings, EV dealerships, and residential societies, this 60 kW charger delivers reliable and efficient charging with a low-footprint design, making it ideal for locations where space optimization is essential.

Built with advanced charging technology, the Siemens SICHARGE RC 60 features a single CHAdeMO charging cable and supports a wide range of current and future electric vehicles. Its robust construction, intelligent connectivity options, and user-friendly interface ensure seamless operation for both operators and EV drivers. The charger is designed for indoor and outdoor installations, providing dependable performance even in demanding environmental conditions.

Key Features of Siemens SICHARGE RC 60

• 60 kW DC fast charging capability for rapid EV charging
• Equipped with 1 x CHAdeMO charging cable
• Compact and low-footprint design for space-efficient installation
• Compatible with a wide range of current and future electric vehicles
• 9.7-inch touchscreen HMI with status LED indicators
• Multiple authentication methods including RFID, OTP, QR Code, and Autocharge
• Ethernet, 3G, and 4G connectivity for remote monitoring and management
• High efficiency of ≥ 94.5% at full load
• IP54-rated enclosure for reliable outdoor operation
• Advanced electrical protection, including MCCB, Fuse, SPD, Earth Fault Relay, and Insulation Monitor
• Supports OCPP 1.6J communication protocol for smart charging network integration
• Emergency Stop button for enhanced user safety

Technical Specifications

• Rated Output Power: 60 kW
• Output Voltage Range: 200–500 V DC
• Maximum Output Current: 150 A
• Input Voltage: 415 V ±10%
• Frequency: 50 Hz
• Power Factor: > 0.99
• Efficiency: ≥ 94.5%
• Protection Rating: IP54
• Operating Temperature: -10°C to +50°C
• Humidity Range: 5% to 95% (Non-Condensing)
• Network Connectivity: Ethernet, 3G, 4G
• Charging Standard: CHAdeMO 1.1
• Communication Protocol: OCPP 1.6J
• Cable Length: 5 meters
• Dimensions (W × D × H): 650 × 390 × 2050 mm
• Weight: Approximately 260 kg

Applications

The Siemens SICHARGE RC 60 is suitable for:

• Public EV charging stations
• Commercial complexes
• Corporate campuses
• EV dealerships
• Residential societies
• Fleet charging facilities
• Smart city charging infrastructure

Why Choose Siemens SICHARGE RC 60 CHAdeMO?

The Siemens SICHARGE RC 60 combines fast charging performance, future-ready compatibility, advanced safety features, and intelligent connectivity in a compact design. Its reliable operation, high efficiency, and compliance with international charging standards make it an ideal solution for businesses and organizations looking to expand their EV charging infrastructure while ensuring a superior charging experience for electric vehicle users.
