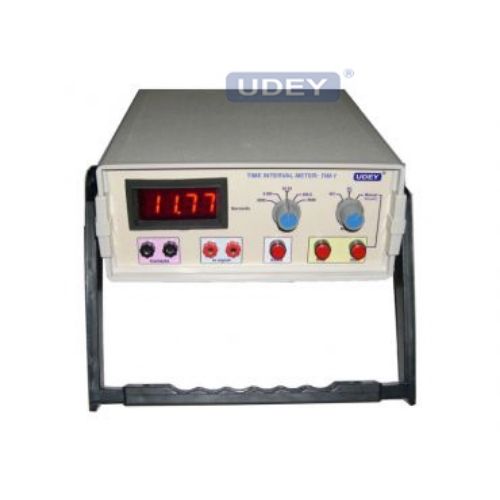

Model : TIM-1, Udey Timer interval meters

The UDEY TIM-1 is a high precision, new generation test set using crystal base for measurements.

Machine Feature

• Digital display in 4 digits.
• Multi-range: to 9999 seconds in five ranges
• Portable light weight.



Machine Technical Specification

Power Supply	230V ± 10%, AC 50 Hz
Measuring Range	9999/9.999/99.99/999.9/9999 seconds
Measuring Accuracy	Range: ±0.05% ± 1 count
Display	LED 12.5 mm; 4 digit with decimal
Protection of Input Signal	up to 240V AC / DC
In Contacts [Potential Free]	OPEN: 100K or more CLOSED: 100 ohm or less
Auxiliary output contact	1 change over potential free. Rating 1A 240V AQC or 24V DC.
Operating Modes	Time interval measurement; stop watch. 1) Start/Stop by potential free open contact closing 2) Start/Stop by potential free close contact Opening 3) Starts by step +ve voltage application (50-250V DC) 4) Stops by step +ve voltage removal (50-250V DC)
Usage Environment	: Less than 45°C. Less than 85% R.H.
Enclosure	ABS body with tilting handle.
Dimensions	: 21.5 (W)x23(D)x9(H) cm approx.
Weight	: 1.8 kg approx.



Standard Accessories

• Power Supply cord 3 core.
• Flexible testing cable set with alligator clamps-2 pairs.
• Operating Manual.
