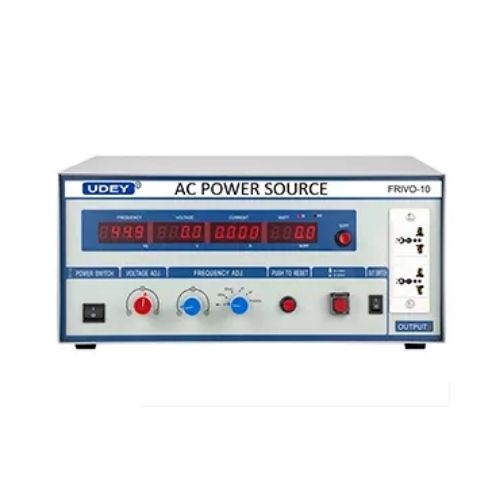

Udey Variable Frequency AC Source Udey Test Kits

Model : SOLID STATE FREQUENCY CONVERTER, VARIABLE FREQUENCY AC SOURCE

Series : FRIVO

UDEY-FRIVO series AC POWER SOURCES are solid state frequency converters offering the most cost-effective and flexible way of providing dependable and accurate frequency and voltage conversion for low power single-phase applications.

Frequency converters are used to convert existing AC power supply into stable and pure sine wave power supply of required frequency. In UDEY-FRIVO series this is achieved through AC – DC – AC conversion. Microprocessor is used as its heart with SPWM circuits, IGBT module adopting technologies such as ‘digital frequency division, D/A conversion, instantaneous feedback and Sinusoidal Pulse Width Modulation.

UDEY-FRIVO easily converts mains 220V AC 50 Hz supply to Variable Output Frequency and Variable Output frequency as under:

  1. 0 – 150 – 300V 50 Hz
  2. 0 – 150 – 300V 60 Hz
  3. 0 – 150 – 300V 45 – 70 Hz
  4. 0 – 150 – 300V 100 Hz (Not available in FRIVO 53 and 55)
  5. 0 – 150 – 300V 200 Hz (Not available in FRIVO 53 and 55)
  6. 0 – 150 – 300V 400 Hz

Control is via front panel knobs.

Machine Feature

  • OUTPUT: Adjustable Frequency: 50Hz, 60HZ, 45-70Hz, 100Hz, 200Hz and 400Hz Adjustable Voltage in two ranges: 0-150-300V
  • Pure Sine wave sinusoidal output
  • Low harmonic distortion
  • Digital display real time data: Frequency, Voltage, Current, Power and Power Factor
  • Solid state with proven advanced IGBT and SPWM technology
  • Protection for ‘Short-circuit’, ‘Over-current’, ‘Over-load’, ‘Over-heat’ with audio alarm.
MODEL FRIVO-5 FRIVO-10 FRIVO-30 FRIVO-50
Output Capacity 500 VA 1000 VA 3000 VA 5000 VA
Circuit IGBT / SPWM
INPUT: AC Phase Single phase two wire
Voltage 220V ± 10%
Frequency 47 – 63 Hz
OUTPUT: AC (adjustable) Phase Single phase two wire
Voltage Range a) Low: 0 – 150 V b) High: 0 – 300 V
Frequency 1) 45 – 70 Hz
2) 50 Hz
3) 60 Hz,
4) 100 Hz
5) 200 Hz
6) 400 Hz
1) 45 – 70 Hz
2) 50 Hz
3) 60 Hz,
4) 400 Hz
MAXIMUM CURRENT Low = 120 V 4.2 A 8.4 A 25 A 42 A
High = 240 V 2.1 A 4.2 A 12.5 A 21 A
Frequency stability ± 0.05%
Voltage stability ± 0.5 %
Waveform Sine wave
Waveform distortion ≤ 2% (resistive load)
Efficiency > 85%
Response time ≤ 2 ms
Display, Resolution, Accuracy Frequency Display: 4 digits; Resolution: 0.1Hz; Accuracy: 1%
Voltage Display: 4 digits; Resolution: 0.1V; Accuracy: 1%
Current Display: 4 digits; Resolution: 0.01A; Accuracy: 1%
Power Display: 4 digits; Resolution: 1W; Accuracy: 1%
Power factor Display: 4 digits; Resolution: 0.001; Accuracy: 1%
Protection Over-voltage, over-current, over-load, over-heat and short-circuit with audio alarm cutting off power. Input and output circuit breakers in model FRIVO 30 and FRIVO 50.
Cooling Forced fan cooling
Working ambient 0° – 45° C; R.H. max 85% non-condensing
Mass Dimensions 42 x 42 x 19 cm 42 x 52 x 60 cm
Weight 24kg 26kg 70kg 85kg
Accessories 3-core mains cord, 2 m long 3- mains wire, 2 m long



Simplicity in operation:

Plug and socket connections with few knobs mean minimal operator training. LED digital displays for output – Frequency, Voltage, Current, Power and Power Factor.

Protection for ‘Short-circuit’, ‘Over-current’, ‘Over-load’ and ‘Over-heat’ is provided to ensure proper operation with audio alarm.

UDEY-FRIVO is built in single unit sheet steel cabinets. Output is available on 3-pin sockets for connecting the load. The power supply is very compact and low in weight.

Applications:

UDEY- FRIVO series are suitable for applications ranging from production-line testing through to research and development laboratories, workshops, shipyard, ship manufacturing and repair plants, etc.
