UDH-50-1-T INSULATION RESISTANCE TESTER UDEY TEST KITS

SKU: UTK_26 Category:

UDH-50-1-T INSULATION RESISTANCE TESTER UDEY TEST KITS

UDH-50-1-T Machine Feature

  • Automatic-microcontroller operated
  • Standard test voltages-0.5kV, 1kV, 2.5kV, 5kV
  • Resistance range to 1TΩ
  • Continuous digital display on LCM
  • Test modes:
    • Insulation resistance,
    • PI (Polarization Index)
    • AR (Dielectric Absorption Ratio)
    • (PI and AR automatically calculated)
  • High circuit: 3mA
  • Visual indication of test voltage and output ON
  • Data storage, data recall and real time + calendar data
  • Backlit LCM with status and battery condition display
  • Power source: Internal re-chargeable battery / AC mains
  • Machine Technical Specification
Test Voltage 0.5 / 1 / 2.5 / 5 kV DC
+/- 5% of rated value
Voltage accuracy 5 Mohm to 1 Tera ohm
I R range 5MΩ-999MΩ :+/-5%rdg +/-3 dgt
1GΩ-9.9GΩ :+/-5%rdg +/-3 dgt
10GΩ-99.9GΩ:+/-10%rdg +/-3 dgt
100GΩ-1TΩ :+/-20%rdg
I R accuracy Insulation resistance (IR)
Test modes Absorption ratio (DAR)
Test, save, recall,
Functions Internal rechargeable battery
Power source 5-40 deg C / RH= max 70%
Enclosure Strong molded cabinet with cover
Dimensions 28 x 21 x 10 cm approximate
Weight 2.5 kg approximate

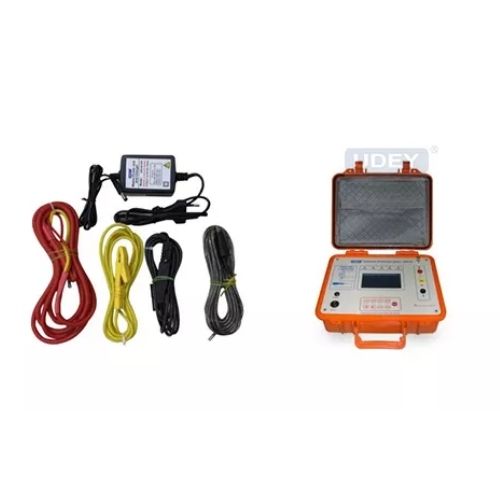

Standard Accessories

  • Flexible testing leads with clamp of 4 metres length of yellow, black and red colour.
  • Charger
  • Earth Cable.
  • Operating manual 1 no.

Apart from high voltage testers, we are also known for supplying high quality Electrical Measurements and Measuring Instruments. These instruments are produced by keeping global standards in mind, and thus they are obvious choices for the leading industrial plants these days.

Our products are based on present industrial demands. With the growing needs or critical instruments for Ultra High Voltage, our team is continuing TO research on inventing the upgraded devices to meet the needs of the industrial plants with precision.

For electric power utility companies, our high voltage testers are considered as the first choice, as our product offers reliability, safety and accuracy. Not just for domestic industrial plants, but our products are exported outside India, in various leading industrial manufacturing companies of different countries.
